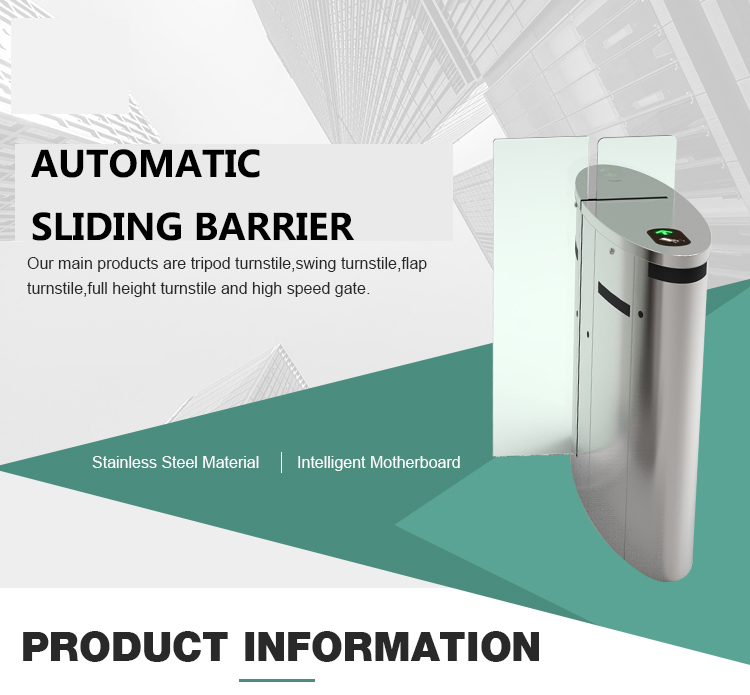

Optical Passage High Level Security Application Body Height Acrylic
Wing 5 Million Service Life Sliding Lane Barrier
General introduction
Intelligent sliding barrier is mainly used to prevent pedestrians
illegally drilled or climbing places to implement the entrance and
exit control management of high-tech products, its shape with
international stainless steel profiles, fine craft, full-featured,
nice, rust, durable, can resist external damage.The equipment
integration mechanical, electronic, microprocessor control of
electronic ticket system, access control attendance system, parking
system, face recognition system, anti-static, fingerprint, palm,
iris and other biometric identification system integration and use.
| Description | Parameters |
| Lane Width | 550-570mm |
| IP | IP54 |
| Pass Speed | 30 persons/min |
| Power supply | AC220V/110V,50/60Hz |
| Drive Mode | Motor drive |
| Max Power Consumption | 200W |
| Opening time | 0.3S |
| Humidity | ≤90% coagulation free |
| Noise | ≤50dB |
| Service Life | 5,000,000 cycles |
| Working Environment | -20°C~+60°C |
| Gross Weight | 100KGS |

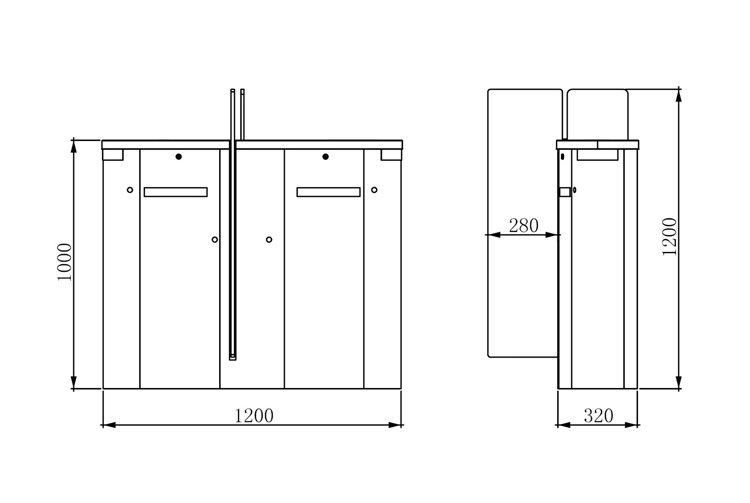

PRODUCT DIMENSION
PRODUCT ADVANTAGES
- The whole system runs smoothly, long-life performance, high
operation dependability and fast response.
- Alarm function, in case of illegal intrusion and reverse intrusion.
- Infrared sensor to prevent pinch pedestrians.
- Anti-breakthrough function. The gate is locked automatically until
opening signal received.
- Anti-trailing function, the turnstile will lock if someone wants to
burst in without swiping the RFID card.
- LED indicator.
- Automatic reset function. If the user fail to pass within the
prescribed time (default time is 5 seconds), the system will cancel
the authority of the current user automatically.
- When power off, optical turnstile will open automatically, which is
complying with fire safety requirements.
MAIN FUNCTIONS & FEATURES
1. Provide normally open / normally close to satisfy management
request.
2. Compatible with RF card readers, bar code readers, biometric
readers, push button...
3. Equipped with infrared photocell, alarm while unauthorized entry
or tailgating attempts, together with anti-strike function to
protect pedestrian.
4. Expanded to automatic identification system, access control
system, Traffic control, attendance check and fare collection
system etc.
5. Automatically reset : lock automatically while the pedestrian
not pass the lane in the pre-set time after the flap opened. The
passing time is adjustable.
6. Equipped with international interface, can be easily integrated
with other R/W device and managed through remote supervision
computer
7. Support gate open while power failure and recover N/C mode after
power on.
8. (Optional) Memory function. Can pass N pedestrians continuously
by swiping card N times correspondingly (N<=16)
9. (Optional) Reversed passing alarm function, barrier will alarm
if pedestrian pass from opposite direction after reading the card.
10. One direction or bi-direction is optional.
12. Direction display to guide passenger which direction is to go.
13. Card-reading with memory or without memory function.
14. Flap barrier can control the population inside in the control
of software.
15. Stable running with little noise.
