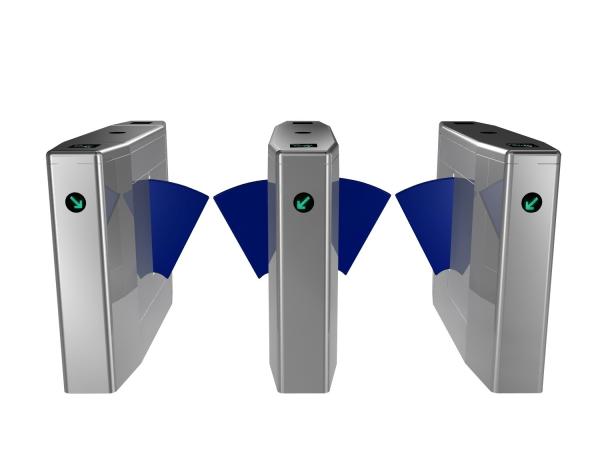

Optical CE Approved Flap Barrier Gate Half Height Turnstile With
Led Indicator
Introduction of Flap Barrier Gate:
- Durable DC brush motor, highly integrated mechanism, 100% heavy
duty operation.
- Sufficient infrared sensors for protection, anti-intrusion, and
anti-tailgating.
- Compatible with other access control system.
- Convenient installation and maintenance.
Applications of Flap Barrier Gate:
Sinomatic full automatic flap barrier gate are widely used in the
following sites:
1. Government buildings
2. Banking buildings
3. Educational buildings
4. Office buildings
5. Gym/Stadium
6. Factory buildings
Features of Flap Barrier Gate:
1. Fault detection and alarm functions, easy to use and
maintenance.
2. The running status can be programmed and controlled with the
built-in keyboard on the main board.
3. Mechanical anti-pinch function. If the gate meets resistance in
the reset process, motors will stop working automatically within
the prescribed time and reset again after the default delay (till
fully reset).
4. Anti-breakthrough function. The gate is locked automatically
until opening signal received.
5. Synchronization functions (for dual gate equipment).
6. Automatic reset function. Should the user fail to pass within
the prescribed time (default time is 5 seconds), the system will
cancel the authority of the current user automatically.
7. Gate can be set as normally open or normally closed.
8. Can be used with variety of card readers: IC / ID card readers,
bar codes, fingerprints, etc. (Access controller needed).
9. Direction can be set as single-direction or bi-direction.
10. LED direction indicator.
11. Gate auto opens when power off and auto close when power on,
complying with fire safety requirements.
12. Alarm function, in case of illegal intrusion and reverse
intrusion, etc.
13. Counter function (optional).
14. Support infrared photocell for anti-pinch and reset function.
Specifications of Flap Barrier Gate:
Item | Specification |
Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
Motor voltage | DC 24V (brush motor) |
Max flow rate | 25 to 30 person per minute |
Flap opening / closing time | 1s |
Reset time when power on | 3s |
Working temperature | -20°C~60°C |
Case of Flap Barrier Gate:
