Security access control rfid office building and fitness centre
full height access control turnstile gate
General introduction:

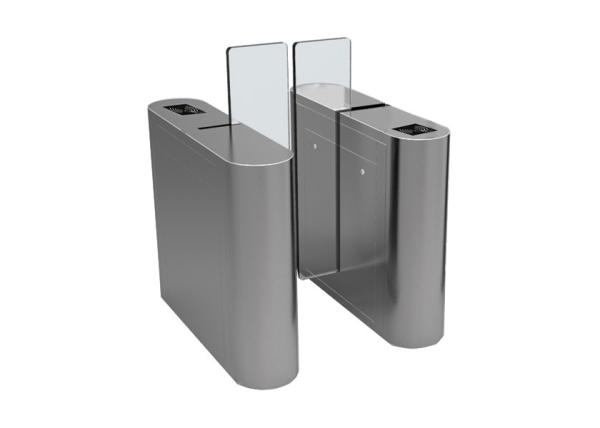

The intelligent swing barrier is one of the serial products of
intelligent passage management series from Our Company. It
possesses superiority incomparable with the traditional management
mode.
The outline of the product is formed after pressing the stainless
steel plate. The shape is featured as a pleasing appearance, a good
looking, stainless and durable. The system is provided with a
standard electric interface and is easily integrated into the
product with read/write facilities. A special control system is
equipped in the product to meet the requirement of fire control, so
that the smooth passage flow is ensured, realizing a timely
diverting of passengers. The product is featured as stable in
performance, safe and reliable, and can be used widely in the
places where passenger flow is great and monitoring is needed such
as stations, harbors and guest house.
Features:
1. Provide normally open / normally close to satisfy management
request.
2. Compatible with RF card readers, bar code readers, biometric
readers, push button...
3. Equipped with infrared photocell, alarm while unauthorized entry
or tailgating attempts, together with anti-strike function to
protect pedestrian.
4. Expanded to automatic identification system, access control
system, Traffic control, attendance check and fare collection
system etc.
5. Automatically reset : lock automatically while the pedestrian
not pass the lane in the pre-set time after the flap opened. The
passing time is adjustable.
6. Equipped with international interface, can be easily integrated
with other R/W device and managed through remote supervision
computer
7. Support gate open while power failure and recover N/C mode after
power on.
8. (Optional) Memory function. Can pass N pedestrians continuously
by swiping card N times correspondingly (N<=16)
9. (Optional) Reversed passing alarm function, barrier will alarm
if pedestrian pass from opposite direction after reading the card.
10. One direction or bi-direction is optional.
11. With self-checking function, it is convenient for users to
maintain and use.
12. Will alarm to prevent unauthorized users to access to secure
area.
13. With anticollision function, the swing gate is locked without
valid signal.
14. With anti-pinch function.
15. With automatic reset function. Pedestrians should pass within
5S after face recognition, otherwise the system will automatically
cancel the permission.
16. Available to work together with various access control system.
Such as IC card, ID card, bar code, QR code, face recognizer etc .
The whole system runs smoothly with low noise.
Specifications of full height sliding gate:
Item | Specification |
Motor type | Brushless DC motor |
Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
Motor voltage | DC 24V |
Max flow rate | 25 to 30 person per minute |
Flap opening / closing time | 1s |
Reset time when power on | 3s |
Working temperature | -20°C~+60°C |
