304 stainless steel case pedetrian waist height sliding turnstile
access control turnstiles
Introduction of waist height sliding turnstiles:
- Flow direction guide with high bright led lamp.
- High speed DSP technology, life up to 5 million times.
- Malfunction self-detection, which is easy for operation and
maintenance.
- Anti-tail, prevent people follow pass without verified.
- Anti-panic, door will keep opened automatically while power cut
off.
- One directional pass or bi-directional pass is settable.
- With crash proof function, turnstile integrated angle coder and
clutch, can protect the door while people or bicycle crash.
- Can be integrated with all kinds of access control systems include
ID/IC, barcode, fingerprint, face, iris, etc.
Specifications of half height sliding gate:
| Item | Specification |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor voltage | DC 24V (brush motor) |
| Max flow rate | 25 to 30 person per minute |
| Flap opening / closing time | 1s |
| Reset time when power on | 3s |
| Working temperature | -20°C~60°C |
Applications of waist height sliding turnstiles:
Sinomatic half height sliding gate is suitable for indoor or
outdoor with tent. They are widely used in airport, railway
station, metro station, bus station, stadium, supermarket, check
point, book stores, sports center, factory, colleges, commercial
building, library, stadium, hotel, bank and etc.
It can be controlled by RFID, barcode, fingerprint or facial
verification device. The data transfers by TCP/IP or RS-485. It's
good for management of people's entry and exit in school, office,
gym, residential, supermarket etc.
Features of waist height sliding turnstiles:
- Working environment: indoor(outdoor use shall stand awning)
- Ultra quiet design: Mechanical design using third-generation
silent, smooth operation no noise impact;
- Super bright passage indicator: directional design of ultra- bright
LED lights to indicate a more eye-catching ;
- Automatic access function: the reader automatically run after the
brake lever to unlock certain angle, automatically bring people
through the gates;
- Multiple modes of function: by setting the switch can be set to the
gates normally open , normally closed two modes of operation;
- Access memory function: After several pedestrians card, access
gates opportunity to remember the number, until the entire passage
of pedestrians closing;
- Power off the pole, the power from the bar features: gates
automatically after power brake lever to facilitate evacuation fall
to meet fire safety requirements ; ( automatic type )
- Anti-collision function: no credit card pedestrian push the brake
lever , lock gates ;
- Remote control: RS485 card can be accessed by computer or TCP to
RS485 remote control gates ;
- Automatic reset function: by credit card is not specified , within
the time gates back in situ cancel access.

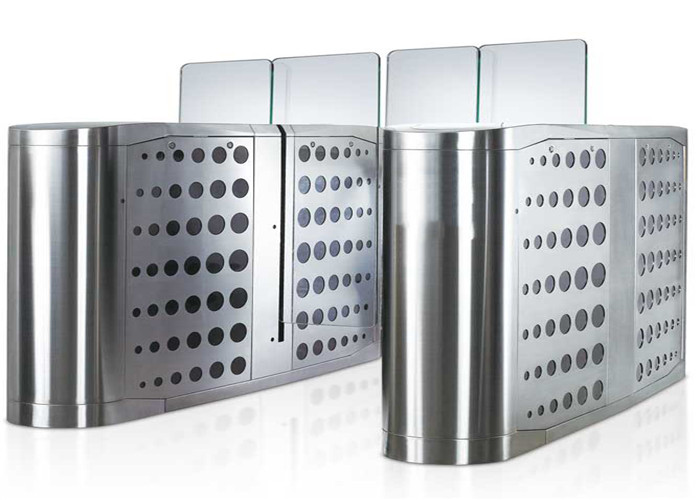

More photo of waist height sliding turnstiles:
