Flow control mirror finish 304 stainless steel mechanical rolling
bar turnstile with base

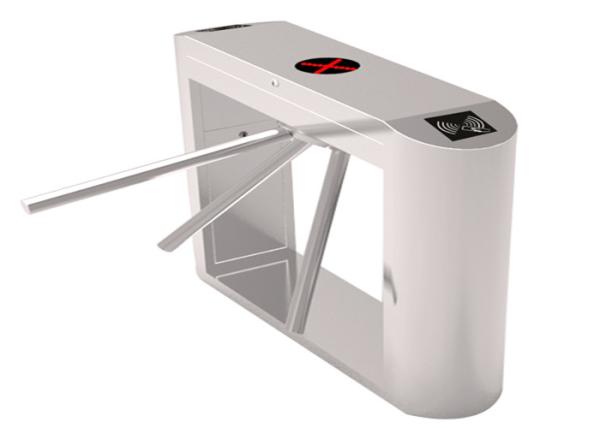

Introduction of Tripod Turnstile Gate:
It is a stainless steel swing turnstile with innovate design, high
quality and fast controlling for entry and exit. It can be
controlled by RFID, barcode, fingerprint or facial verification
device. The data transfers by TCP/IP or RS-485. It's good for
management of people's entry and exit in school, office, gym,
residential, supermarket etc.
Applications of Tripod Turnstile Gate:
Flow control tripod turnstile gate model SN-TT03 is fit for indoor
usage. They are optimized economical solution for hotel, hospital,
canteen, bank, lobby, stadium, supermarket etc.
Features of Tripod Turnstile Gate:
- Flow direction guide with high bright led lamp.
- High speed DSP technology, life up to 5 million times.
- Malfunction self-detection, which is easy for operation and
maintenance.
- Anti-tail, prevent people follow pass without verified.
- Anti-panic, door will keep opened automatically while power cut
off.
- One directional pass or bi-directional pass is settable.
- With crash proof function, turnstile integrated angle coder and
clutch, can protect the door while people or bicycle crash.
- Can be integrated with all kinds of access control systems include
ID/IC, barcode, fingerprint, face, iris, etc.
Specifications of Tripod Turnstile Gate:
| Item | Specification |
| Power supply | AC220±10%V 50Hz/AC110±10% 60Hz |
| Power consumption | 40W |
| Access device input voltage | Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA |
| Motor | No motor |
| Max flow rate | 25 to 30 person per minute |
| Arm length | 510mm |
| Working temperature | -20°C~60°C |
Product details of Tripod Turnstile Gate:
Cases of Tripod Turnstile Gate:
